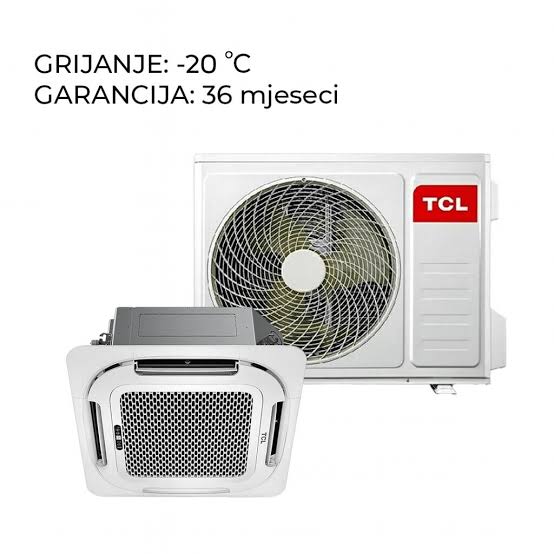

TCL TCD-18CHRH 1.5-Ton Inverter Ceiling Cassette AC
The TCL TCD-18CHRH is a 1.5-ton inverter ceiling cassette air conditioner designed to provide balanced cooling and heating in residential and commercial spaces. Its ceiling-mounted cassette design distributes conditioned air around the room while preserving valuable wall and floor space.
Efficient Inverter Performance
The inverter system automatically adjusts performance according to the required indoor temperature. This helps maintain consistent comfort while reducing unnecessary energy consumption and temperature fluctuations.
Powerful Cooling and Heating
The TCL TCD-18CHRH provides a nominal cooling capacity of 16,050 BTU per hour. It also supports heating operation, making it suitable for comfortable year-round temperature control.
Eight-Direction Air Distribution
The cassette panel provides eight-direction airflow for more balanced air circulation. This helps distribute conditioned air across different areas of the room and reduces uneven hot or cold spots.
Adjustable Airflow Louvers
Its adjustable louvers allow airflow direction to be controlled according to the room layout and user requirements. This provides improved comfort in offices, shops, meeting rooms and other commercial interiors.
Energy-Efficient Operation
The TCL TCD-18CHRH carries an A++ cooling energy rating and uses inverter technology to deliver efficient performance. Actual electricity consumption depends on room size, insulation, temperature settings and daily operating conditions.
R32 Refrigerant
The unit uses R32 refrigerant for effective cooling and comparatively lower environmental impact than several older refrigerant types.
Quiet Indoor Operation
The indoor unit is designed to operate at a low sound level, making it suitable for offices, meeting rooms, shops and other spaces where comfortable and quiet operation is important.
Fresh-Air Intake Support
The cassette system supports fresh-air intake to help improve indoor ventilation. Fresh-air ducting and related installation accessories may be required separately.
Ceiling-Mounted Design
The compact indoor unit is installed inside a false ceiling, while only the decorative cassette panel remains visible. This provides a neat and professional appearance in modern interiors.
Professional Installation Required
Correct electrical wiring, copper piping, drainage, ceiling support and refrigerant installation are necessary for reliable performance. Installation should be completed by an experienced commercial air-conditioning technician.
TCL TCD-18CHRH Specifications
Brand: TCL
Model: TCD-18CHRH/DV
AC Type: Ceiling Cassette Air Conditioner
Capacity Class: 1.5 Ton
Nominal Cooling Capacity: 16,050 BTU/h
Cooling Capacity: 4.70 kW
Nominal Heating Capacity: 16,050 BTU/h
Heating Capacity: 4.70 kW
Technology: Inverter
Operation: Cooling and Heating
Air Distribution: Eight-Direction Airflow
Refrigerant: R32
Cooling Energy Class: A++
Heating Energy Class: A+
SEER: 6.1
SCOP: 4.0
Indoor Airflow: 750 m³/h
Indoor Sound Level: From 28 dB(A)
Power Supply: 220–240V, 50Hz, Single Phase
Indoor Unit Dimensions: 570 × 245 × 570 mm
Cassette Panel Dimensions: 650 × 57 × 650 mm
Outdoor Unit Dimensions: 853 × 602 × 349 mm
Maximum Pipe Length: 25 Metres
Maximum Height Difference: 10 Metres
Suitable For: Offices, Shops, Restaurants and Commercial Spaces
TCL TCD-18CHRH Price in Pakistan
Check the latest TCL TCD-18CHRH price in Pakistan at Urban Electronics Lahore. Contact us to confirm current stock, installation requirements, delivery charges and official warranty information.
