TCL TCC-48CHRH Price in Pakistan
TCL TCC-48CHRH price in Pakistan depends on current stock, installation requirements and warranty coverage. This 4-ton Full DC Inverter ceiling cassette AC provides powerful cooling and heating for large commercial spaces.

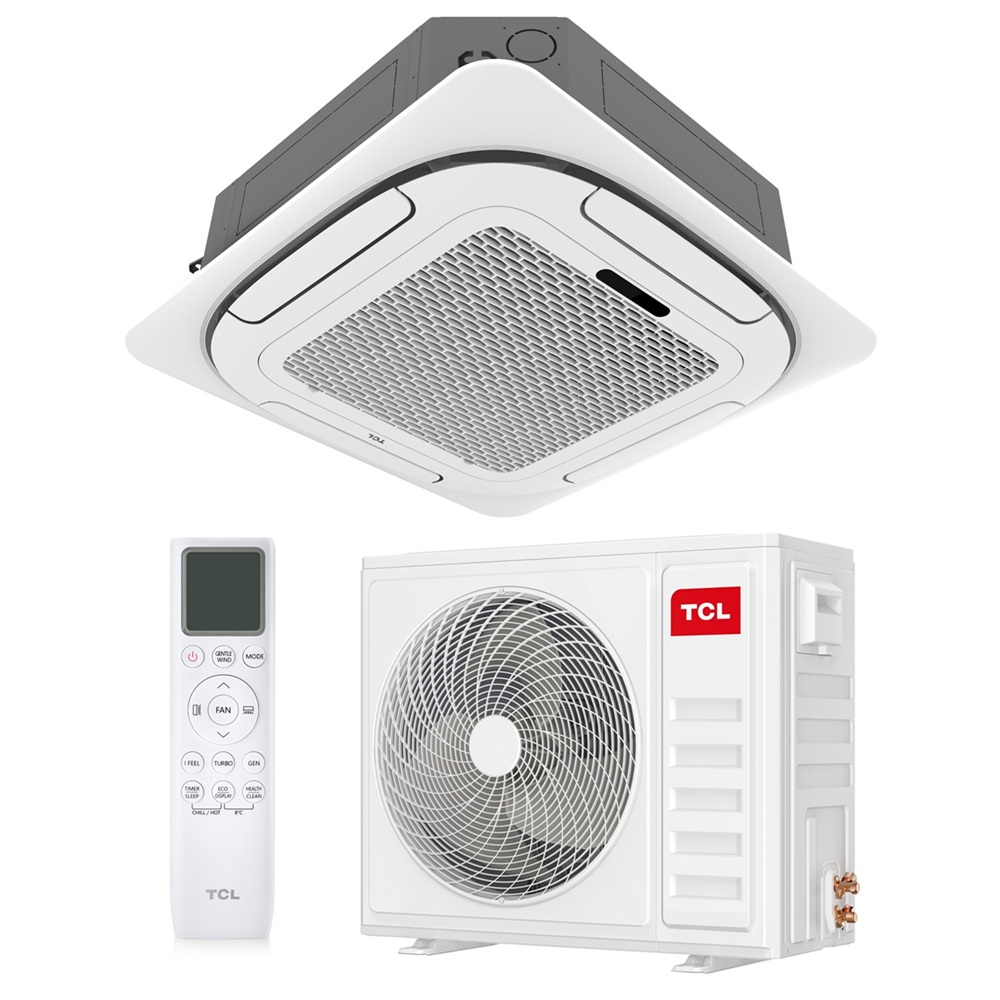

TCL TCC-48CHRH 4-Ton DC Inverter Ceiling Cassette AC
The TCL TCC-48CHRH is a high-capacity commercial ceiling cassette air conditioner designed for large offices, restaurants, hotels, showrooms, conference rooms and halls. Its ceiling-mounted design provides balanced air distribution while saving valuable wall and floor space.
48,000 BTU Capacity Class
This TCL ceiling cassette AC belongs to the 48,000 BTU capacity class. It is designed to provide effective temperature control in large indoor areas where a standard wall-mounted air conditioner may not be sufficient.
Full DC Inverter Technology
Full DC Inverter technology adjusts compressor and fan performance according to the required indoor temperature. This provides stable comfort, efficient operation and fewer temperature fluctuations.
Cooling and Heating Operation
The TCL TCC-48CHRH supports cooling and heating operation, providing comfortable indoor temperature management during different seasons.
Eight-Direction Air Distribution
The cassette panel distributes conditioned air in eight directions. This helps circulate air throughout the room and reduces uneven hot or cold areas.
Adjustable Airflow Louvers
The adjustable louvers provide greater control over airflow direction. Air distribution can be adjusted according to room size, seating arrangement and comfort requirements.
Seven Fan-Speed Levels
Multiple fan-speed settings allow airflow performance to be adjusted according to current cooling or heating requirements.
Fresh-Air Intake Support
The cassette system supports fresh-air intake to help improve indoor ventilation. Additional ducting and installation accessories may be required for this function.
Built-In Condensate Pump
The built-in condensate pump assists with removing collected water from the indoor unit. This provides greater flexibility when arranging the drainage system.
Self-Cleaning Function
The self-cleaning function helps reduce moisture and dirt accumulation around the indoor heat exchanger, supporting cleaner and more efficient operation.
Wi-Fi Ready
Compatible configurations support Wi-Fi control through the TCL Home application. The required Wi-Fi module and regional compatibility should be confirmed before purchase.
R32 Refrigerant
The system uses R32 refrigerant for effective cooling performance and comparatively lower environmental impact than several older refrigerant types.
Three-Phase Power Requirement
The outdoor unit requires a compatible three-phase electrical connection. The available voltage, wiring and electrical protection must be checked by a qualified technician before installation.
Professional Installation Required
Correct ceiling support, electrical wiring, copper piping, drainage, refrigerant handling and airflow adjustment are essential. Installation should be performed by an experienced commercial air-conditioning technician.
TCL TCC-48CHRH Specifications
Brand: TCL
Model: TCC-48CHRH/DV7
Product Type: Ceiling Cassette Air Conditioner
Capacity Class: 4 Ton
Nominal Cooling Capacity: Approximately 48,000 BTU/h
Nominal Heating Capacity: Approximately 55,000 BTU/h
Technology: Full DC Inverter
Operation: Cooling and Heating
Air Distribution: Eight-Direction Airflow
Fan-Speed Levels: Seven
Refrigerant: R32
Fresh-Air Intake: Supported
Condensate Pump: Built-In
Self-Cleaning: Supported
Wi-Fi Control: Ready
Controller: Wireless Remote Control
Maximum Indoor Airflow: Approximately 2,100 m³/h
Indoor Unit Dimensions: Approximately 840 × 840 × 290 mm
Cassette Panel Dimensions: Approximately 950 × 950 × 45 mm
Maximum Pipe Length: Up to 75 Metres
Maximum Height Difference: Up to 30 Metres
Outdoor Power Supply: Three Phase
Suitable For: Large Offices, Restaurants, Hotels, Showrooms and Halls
TCL TCC-48CHRH Price in Pakistan
Check the latest TCL TCC-48CHRH price in Pakistan at Urban Electronics Lahore. Contact us to confirm current stock, exact unit configuration, three-phase power requirements, installation charges, delivery and warranty information.
