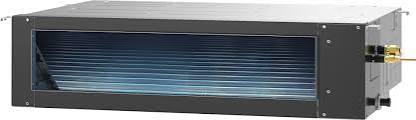

TCL TCC-48D1HWH 4-Ton DC Inverter Duct AC
The TCL TCC-48D1HWH is a powerful 4-ton duct air conditioner designed for efficient climate control in large residential and commercial spaces. Its concealed ducted installation provides uniform air distribution while maintaining a clean and modern interior appearance.
48,000 BTU Cooling Capacity
With a nominal cooling capacity of 48,000 BTU per hour, this duct AC is suitable for offices, halls, restaurants, showrooms and other large indoor areas. Actual coverage depends on room dimensions, insulation, ceiling height and environmental conditions.
Full DC Inverter Technology
Full DC Inverter technology automatically adjusts compressor performance according to the required temperature. This provides stable cooling, reduced temperature fluctuations and more efficient operation compared with conventional fixed-speed systems.
Tropical T3 Performance
The TCL TCC-48D1HWH is engineered for demanding climatic conditions. Its wide operating range supports cooling operation in outdoor temperatures reaching up to 60°C, making it suitable for hot-weather regions.
Cooling and Heating Operation
This TCL duct AC supports both cooling and heating, allowing comfortable indoor temperature management throughout different seasons.
R32 Refrigerant
The system uses R32 refrigerant, offering effective cooling performance with comparatively lower environmental impact than several older refrigerant types.
Concealed Ducted Installation
The indoor unit is installed above a false ceiling and distributes conditioned air through ducts and vents. This provides balanced airflow without placing a large indoor unit directly on the wall.
BMS-Compatible Design
Building Management System compatibility makes the unit suitable for commercial installations where centralized monitoring and control may be required. Compatibility and additional accessories should be confirmed before installation.
Professional Installation Required
Correct duct sizing, copper piping, electrical wiring, drainage and airflow balancing are essential for reliable operation. Installation should be performed by an experienced commercial air-conditioning technician.
TCL TCC-48D1HWH Specifications
Brand: TCL
Model: TCC-48D1HWH
Series: D1 Series
AC Type: Duct Air Conditioner
Capacity: 4 Ton
Nominal Cooling Capacity: 48,000 BTU/h
Cooling Capacity Range: 12,000–53,000 BTU/h
Technology: Full DC Inverter
Operation: Cooling and Heating
Climate Class: Tropical T3
Refrigerant: R32
Maximum Cooling Operating Temperature: Up to 60°C
Installation Type: Concealed Ducted
BMS Compatibility: Supported
Indoor Unit Dimensions: 1400 × 800 × 380 mm
Outdoor Unit Dimensions: 950 × 1330 × 340 mm
Suitable For: Large Residential and Commercial Spaces
TCL TCC-48D1HWH Price in Pakistan
Check the latest TCL TCC-48D1HWH price in Pakistan at Urban Electronics Lahore. Contact us to confirm current stock, installation requirements, delivery charges and official warranty information.
